The Plotting Page

Philadelphia includes a built-in interface for plotting the data stored in shift reports. Currently, it supports scatter plots, time series, and histograms of numerical fields. All fields are plottable, including any added by users. Since field names are arbitary, all fields for entry of a series name autocomplete with valid field names.

Scatter Plots

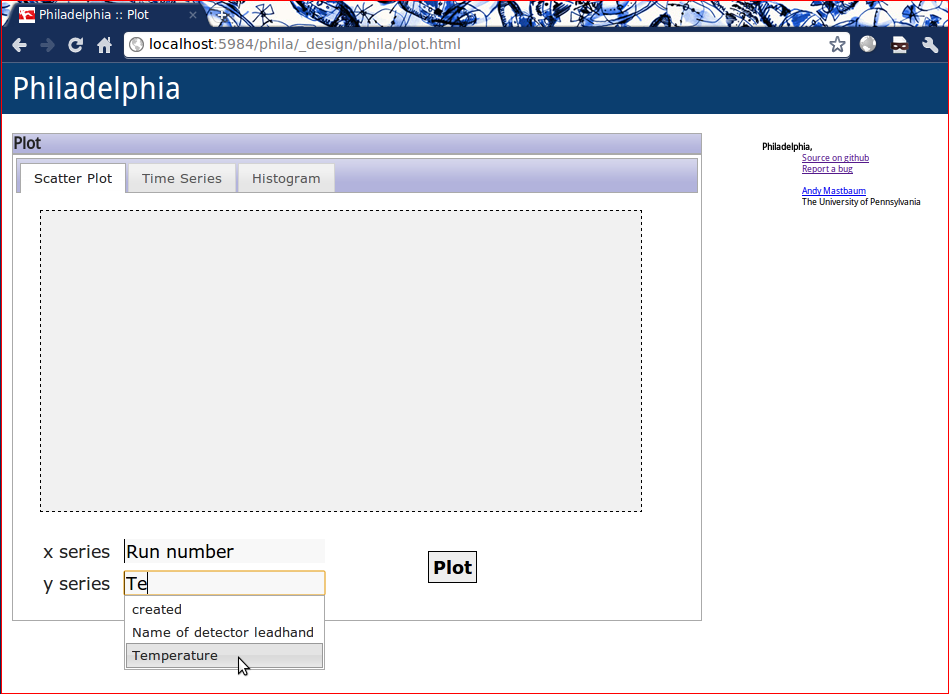

Enter an X series (e.g. “Run number”) and a Y series (e.g. “Temperature”) to create a scatter plot.

Time Series

Enter a series name (e.g. “Temperature”) to plot the history of that value over time.

Histograms

Enter a series name (e.g. “Temperature”) and the desired number of bins to create a histogram.
